Cereal Bar Cutting Machine
You are here: Home » Products » Cereal Bar Processing Line » Cereal Bar Cutting Machine

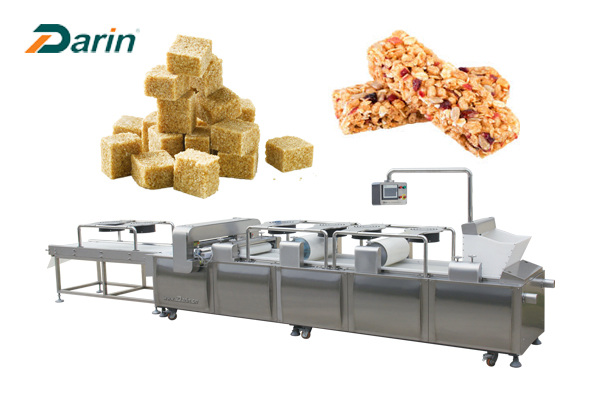

Cereal Bar Cutting Machine

DRC-75 cereal bar cutting machine is sutiable to make cereal bar, peanut bar, sesame bar, muesli bar etc. The raw materials can be rice, oats, nuts, sesame, pop rice, dry fruits etc.
Availability:

PDF Export

  • DRC-75

  • DARIN

  • 84388000

Feature

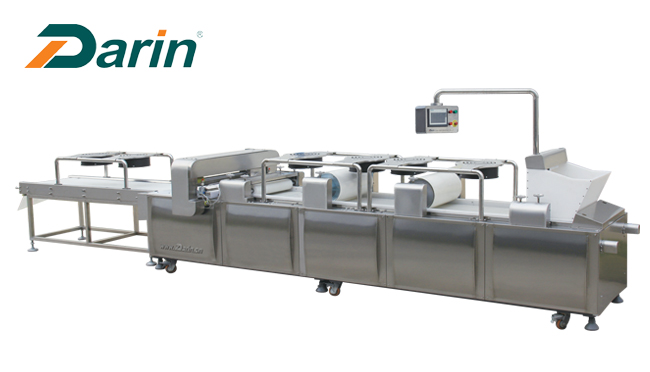

Machine introduction

Cereal Bar Cutting Machine is suitable to make cereal bar / peanuts bar, caramel treats, sesame plate and other product made of granule materials.



Raw materials: The raw materials can be pop rice, oats, flakes, nuts, peanuts, sesame etc, and dry fruits like berries, raisins etc.



  • Combined procedures into one: Filling materials - Pressing shape - Cooling materials - Cutting cereal bar - Conveying & cooling cereal bar.

  • Material hopper is made by food grade HMWHDPE to avoid the sticking materials, also has heater to keep temperature.

  • Controlled by Siemens PLC and touch screen with friendly interface. The staff  could 180°rotate the touch screen, flexible and convenient. The controller languages can be Chinese, English, French, Arabic, Spanish, Russian, etc.

  • Equipped with two sets of pressing roller, made by food grade material, more healthy with anti-sticking function. The roller can be adjusted to meet the height of different thickness product requirement.

  • Equipped with three sets of fans above the conveyor to cool the materials quickly.

  • Vertical cutter uses cutter groove design to ensure the materials can be 100% cut. After cutting, muesli bar has no sticking and separate automatically.

  • Horizontal cutter could continually cut, no stop.

  • The connection of forming part and conveyor part use the gear drive, it is easy installation and disassemble.


切块机2

DRC-76-1

DRC-75-1

切块机1


cereal bar cutting line

Sample


Product Details

Machine layout

DRC-75 layout


Parameter



Model

DRC-75

Capacity

300-400kg/hr

Cereal bar thickness

10-30mm

Conveyor belt width

600mm

Effective belt width

540mm

Material Hopper Size

560 x 470 x 420mm

Power

5.1kw

Cutter material

Mold steel coated with teflon

Weight

1500kg

Machine size

6650 x 1310 x 2000mm


Proportioning system

1. Large bin batching system

The proportioning bin system is suitable for materials with a large proportion in production.

The single bin volume is 220L, full stainless steel material.

The system includes guide rail and movable scale, 4 bins per group. The left two bins in the picture are used to break up the sticky strawberry and cranberry materials and discharge the materials by vibrating.

Small batching system


2. Small bin batching system

This proportioning system is mainly for materials with small proportion in production, including guide rail, small movable scale, full made of stainless steel. The materials can be powder, granules or liquid.

Four bins per group, and each bin volume is 25L.

Samll batching system 02


3. Movable heat preservation tank

Volume: 120L

Full made of stainless steel.

The heat preservation tank can be raised to match the top cover and mixing blade, insulation layer is able to keep warm for sugar syrup.


heat preservation tank

Flow chart

Model

DRC-75

Capacity

300-400kg/hr

Power

5kw

Dimension

6700x1250x2000mm

Workers Needed

3-4


Company Video

FAQ

1. Could we visit your factory to check the machine carefully and closely?

You’re more than welcome to visit Darin, we will provide machine test running, face to face discussioin and turkey project design solution.



2. Could you afford technician team to guide our installation and commissioning?

Oversea commssioning service provided, our technician will help to install the machine, and teach local workers about operation and manitenance. Buyer should pay for the technician’s round flight ticket , accommodation and salary.



3. How long is your machine’s guarantee time?

One year from the machine arrive at your factory.



4. If some parts break after warranty, what should we do?

Darin supply full-life after sales service, whenever new parts needed, we will help to supply new replacments at reasonable price & in shortest time.



5. If we show our workshop size, can you design layout for the whole line?

AutoCAD layout will be provided as client’s workshop size.



6. During epedemic period, how should we install the processing line without any experience?

1) Before delivery, we will take detailed operation video to show how to assemble each machine, how to operate and maintain the line.

2) Operation manual, circuit diagram etc in English version will be provided.

3) Online support available. If any questions during installation or production, our engineer will help to solve by videocall or zoom meeting.
