Pet Treats Molding Machine / Dog Treats Injection Molding Machine
You are here: Home » Products » Pet Treat Processing Line » Pet Treats Molding Machine / Dog Treats Injection Molding Machine

Pet Treats Molding Machine / Dog Treats Injection Molding Machine

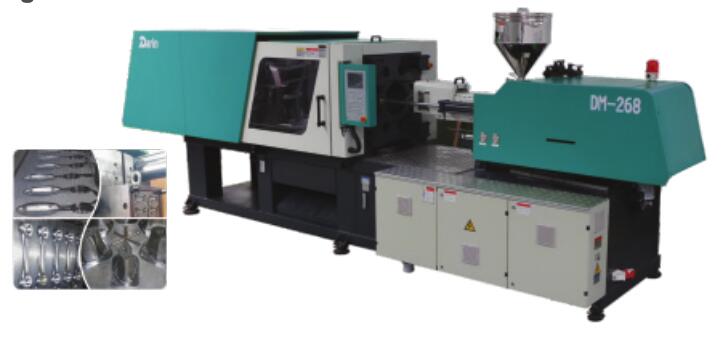

DM-268 Pet Treats Molding Machine is special machinery for producing injection molding pet snacks. With such machine, various shapes can be made, such as hedgehog, crocodile, dog, bone, pork ears, barrel, etc. The shapes are very lovely and it is an ideal encouragement to dogs and cats while they learn a new action or do well in some exercises and games.

    Availability:

    PDF Export

    • DM268

    • DARIN

    • 84388000

    Advantage

    We can provide different recipes to meet various market demands. It has the following features:

    • DM-268 Pet Treats Molding Machine comes with user-friendly microprocessor controller with these following features.

    • Equipped with servo motor to realize higher efficiency and lower consumption.

    • Dust, oil proof and colorful touch switch control panel.

    • El display of pressure, speed, time and distance for each motion.

    • Shut-down device with 100 presets mold data memory.

    • PID barrel temperature control: temperature abnormal & electrical wire breaking alarm

    • SSR-solid state temperature controller.

    • Screw cold start protection.

    • Abnormal shot detection.

    • Output quantity and packaging quantity preset.

    • Clamping, injection and ejection, and carriage action (option) by touch screen.

    • Screw rotating speed read-out.

    • Security code function to avoid missing data or careless changing.

    • Multi-safety protection to operator.

      Advantage:

    1)Darin is supplier of General Mills (a top 500 comanines in the world), Kelloggs, Melinda & Bill Gates foundation;

    2) Darin is High-Tech enterprise of Shandong Province, 2019;

    3) Darin is deputy director unit of Shandong Pets Industrial Association.

    4) Motors are from WEG, which has 3-year world-wide guarantee or Siemens motor;

    5) Electric parts are from ABB or Schneider, easy to find replacments at local market;

    6) PLC and touch screen are from Siemens, Germany to realize easier operation and less labor quantity;

    7) PLC and touch scrren controls whole processing line, not one or two single equipment;

    8) While faults occurred, relevant information will be displayed on touch screen, easy to settle the problem;

    9) Control cabinet has 24V safe voltage (not 220V), which could protect the operator even electric leakage occurred;

    10) Three kinds of protectors to keep machine and operator safe: over-current protector, over-voltage protector and over-heat protector;

    11) All the cover body, mesh belt and parts touching with materials or final products are made by stainless steel 304.

    sampleflow chart


    Technical Parameter

    Item

    Name of item

    Unit

    DM-268

    Injection Unit

    Screw Diameter

    mm

    55

    Screw L/D Ratio

    Ratio

    20

    Injection Volume (Theoretical)

    cm

    601

    Injection Weight (PS)

    g

    548

    Injection Pressure

    Mpa

    185.1

    Injection Rate into Air

    g/s

    223.7/276.1

    Injection Stroke

    mm

    256

    Injection Speed

    Mm/s

    95/116

    Screw Speed

    rpm

    201/246

    Clamping Unit

    Clamping Force

    KN

    2600

    Clamping Stroke

    mm

    550

    Space Between Tie-bars

    mm×mm

    580 x 580

    Max. Mould Height

    mm

    600

    Min. Mould Height

    mm

    250

    Ejector Stroke

    mm

    160

    Hydraulic Ejection

    KN

    68

    Ejector Rob Quantity

    pcs

    9

    Others

    Max. Pump Pressure

    Mpa

    17.5

    Pump Motor Power

    kw

    22/30

    Heater Power

    kw

    15.9

    Hopper Volume

    L

    50

    Oil Pump Volume

    L

    550

    Machine Weight

    t

    8.5

    Mould Positioning Ring Diam

    mm

    160

    Sphere Radius

    mm

    SR10

    Machine Dimension

    m x m x m

    5.82 x 2 x 2


    Product Details

    002001

    Company Video

    FAQ

    1. Could we visit your factory to check the machine carefully and closely?

    You’re more than welcome to visit Darin, we will provide machine test running, face to face discussioin and turkey project design solution.



    2. Could you afford technician team to guide our installation and commissioning?

    Oversea commssioning service provided, our technician will help to install the machine, and teach local workers about operation and manitenance. Buyer should pay for the technician’s round flight ticket , accommodation and salary.



    3. How long is your machine’s guarantee time?

    One year from the machine arrive at your factory.



    4. If some parts break after warranty, what should we do?

    Darin supply full-life after sales service, whenever new parts needed, we will help to supply new replacments at reasonable price & in shortest time.



    5. If we show our workshop size, can you design layout for the whole line?

    AutoCAD layout will be provided as client’s workshop size.



    6. During epedemic period, how should we install the processing line without any experience?

    1) Before delivery, we will take detailed operation video to show how to assemble each machine, how to operate and maintain the line.

    2) Operation manual, circuit diagram etc in English version will be provided.

    3) Online support available. If any questions during installation or production, our engineer will help to solve by videocall or zoom meeting.
