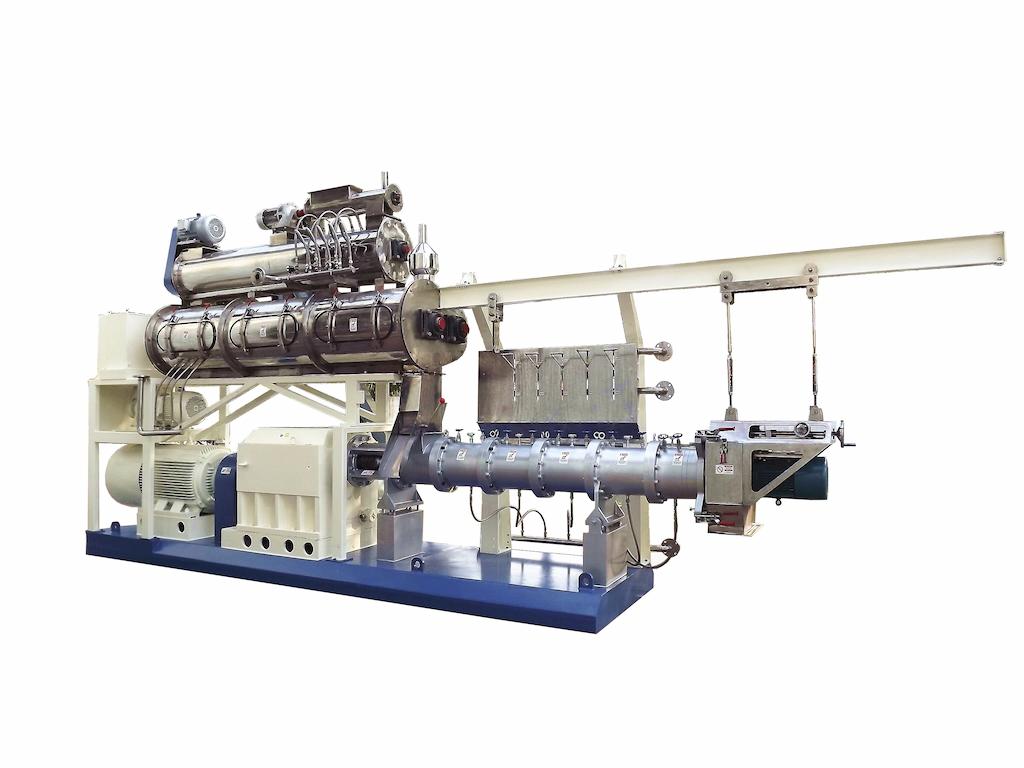

The Fish food extruding line is suitable to make floating fish food with various sizes and shapes.

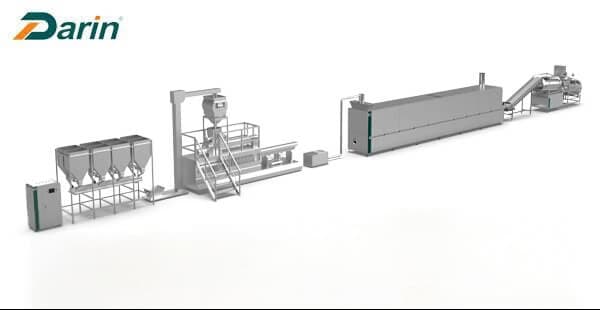

1. Flow chart: flour mixing-screw covneying-extruding-sifting-air conveying-drying-flavoring-packaging.
2. Raw materials: corn flour, rice flour, wheat flour, fish bone meal, chicken powder, glycerol etc.
3. Voltage: normally 380v, 50hz, 3 phase, also can customize as client's local voltage.
4. Adopt Siemens motor, prolong the machines usage life.
5. Siemens PLC and touch screen make the line more easier to operate, the fault will display on the screen directly, no need to check the machine one by one.
6. Different capacity for choice, from 100kg/hr to 5000kg/hr.
| PDF Export | |
DR-65, DR-70, DR-85, DR-90
DARIN
84388000
Flow Chart
Floating Fish Feed Processing Line focuses on the production of feeds for animals with a high emotional value but low economic usefulness, apart from the aspect of breeding. Nonetheless, balancing the components and gentle processing are at the center of the related quality considerations. Extrusion is therefore increasingly proving to be the right tool for modern Pet food. A complete feed, fed as a diet over a prolonged period of time, must ensure the vitality of the animal and prevent deficiencies. This is quite a challenge to the feed manufacturer in terms of the selection and composition of the raw materials, their optimal processing, and effective quality assurance. A large number of pet food products are made by extrusion.
1) Dog and cat foods, directly extruded and dried, dry or semi-moist. These constitute the biggest market segment.
2)Feed for fish, high-grade complete feeds capable of maintaining the health even of exotic species in aquariums over prolonged periods of time, sinking or floating feed.
Why Choose Darin? Just as Special Features as below:
1. Motors are from Siemens;
2. Electric parts are from ABB or Schneider, easy to find replacments at local market;
3. PLC and touch screen are from Siemens, to realize easier operation and less labor quantity;
4. PLC and touch scrren controls whole processing line, not one or two single equipment;
5. While faults occurred, relevant information will be displayed on touch screen, easy to settle the problem;
6. Control cabinet has 24V safe voltage (not 220V), which could protect the operator even electric leakage occurred;
7. Three kinds of protectors to keep machine and operator safe: over-current protector, over-voltage protector and over-heat protector;
8. All the cover body, mesh belt and parts touching with materials or final products are made by stainless steel 304.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Technical Parameter
Model | Capacity | Power | Dimension |
DR-65 | 120-150kg/h | 80kw | 18*5*3m |
DR-70 | 200-300kg/h | 90kw | 20*5*3m |
DR-85 | 500-600kg/h | 150kw | 30*5*4m |
DR-90 | 800-1000kg/h | 200kw | 35*5*5m |
DR-95 | 2000kg/h | 250kw | 40*10*16m |
DR-120 | 3000kg/h | 350kw | 50*10*20m |
DR-135 | 5000kg/h | 450kw | 60*10*24m |
Product Details
Company Video
FAQ
1. Could we visit your factory to check the machine carefully and closely?
You’re more than welcome to visit Darin, we will provide machine test running, face to face discussioin and turkey project design solution.
2. Could you afford technician team to guide our installation and commissioning?
Oversea commssioning service provided, our technician will help to install the machine, and teach local workers about operation and manitenance. Buyer should pay for the technician’s round flight ticket , accommodation and salary.
3. How long is your machine’s guarantee time?
One year from the machine arrive at your factory.
4. If some parts break after warranty, what should we do?
Darin supply full-life after sales service, whenever new parts needed, we will help to supply new replacments at reasonable price & in shortest time.
5. If we show our workshop size, can you design layout for the whole line?
AutoCAD layout will be provided as client’s workshop size.
6. During epedemic period, how should we install the processing line without any experience?
1) Before delivery, we will take detailed operation video to show how to assemble each machine, how to operate and maintain the line.
2) Operation manual, circuit diagram etc in English version will be provided.
3) Online support available. If any questions during installation or production, our engineer will help to solve by videocall or zoom meeting.
