Pet Food Extruding Line focus on the production of feeds or pet foods with high nutritional value but low production cost. This line adopts particular process technology, and the final products have fashion shape, special tastes and scientific nutrition.
Its role is to provide the most basic nutrients for animal dogs to ensure life, growth and health. It has the advantages of comprehensive nutrition, high digestion and absorption rate, scientific formula, quality standards, convenient feeding and prevention of certain diseases.
The raw materials are mainly corn flour, wheat flour, chicken powder, animal bone meal, glycerol etc. Different sizes and shapes can be made by changing molds.
Flow chart: Flour mixer-screw conveyor-extruder-air conveyor-dryer-flavor coating drum-cooler-packing machine.
Different capacity for choice, from 100kg/hr to 5ton/hr.
| PDF Export | |
DR-65, DR-70, DR-85, DR-90
DARIN
84388000
Advantage
Pet Food Extruding Line focuses on the production of pet food for dog, cat, bird, fish, turtle, rabbit, horse, etc. The final pet food have a high nutritional value but low investment. Pet Food Extruding Line is automatic and continuous, and wholly controlled by PLC and touch screen.
Its role is to provide the most basic nutrients for animal dogs to ensure life, growth and health. It has the advantages of comprehensive nutrition, high digestion and absorption rate, scientific formula, quality standards, convenient feeding and prevention of certain diseases.
Features
Siemens motor
Siemens and PLC touch screen, easy to operate
Machine cover and food contact parts are made of stainless steel, conforming to food grade.
Different sizes and shapes can be made by changing molds.
Basic recipe can be provided for reference.
Flow chart: Flour mixer-screw conveyor-extruder-sifter-air conveyor-dryer-small hoister-flavoring system-cooling-packing.

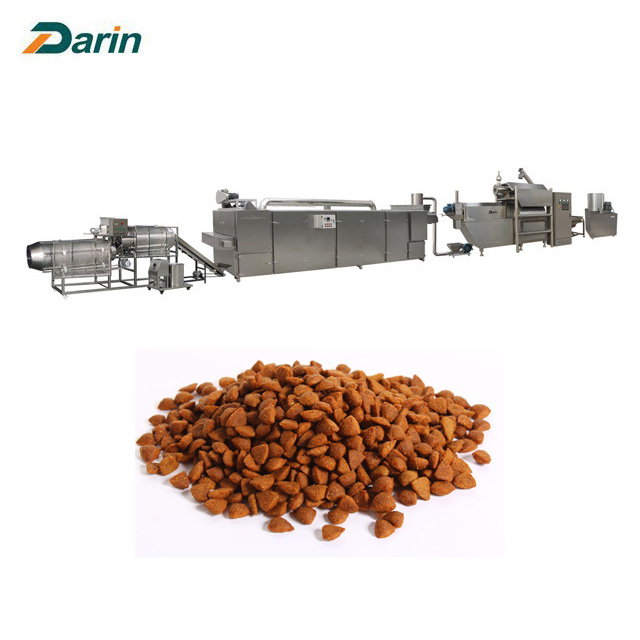

Sample Picture
Technical Parameter
Model | Capacity | Power | Dimension |
DR-65 | 120-150kg/h | 80kw | 18*5*3m |
DR-70 | 200-300kg/h | 90kw | 20*5*3m |
DR-85 | 500-600kg/h | 150kw | 30*5*4m |
DR-90 | 800-1000kg/h | 200kw | 35*5*5m |
DR-95 | 2000kg/h | 250kw | 40*10*16m |
DR-120 | 3000kg/h | 350kw | 50*10*20m |
DR-135 | 5000kg/h | 450kw | 60*10*24m |
Product Details
Company Video
FAQ
1. Could we visit your factory to check the machine carefully and closely?
You’re more than welcome to visit Darin, we will provide machine test running, face to face discussioin and turkey project design solution.
2. Could you afford technician team to guide our installation and commissioning?
Oversea commssioning service provided, our technician will help to install the machine, and teach local workers about operation and manitenance. Buyer should pay for the technician’s round flight ticket , accommodation and salary.
3. How long is your machine’s guarantee time?
One year from the machine arrive at your factory.
4. If some parts break after warranty, what should we do?
Darin supply full-life after sales service, whenever new parts needed, we will help to supply new replacments at reasonable price & in shortest time.
5. If we show our workshop size, can you design layout for the whole line?
AutoCAD layout will be provided as client’s workshop size.
6. During epedemic period, how should we install the processing line without any experience?
1) Before delivery, we will take detailed operation video to show how to assemble each machine, how to operate and maintain the line.
2) Operation manual, circuit diagram etc in English version will be provided.
3) Online support available. If any questions during installation or production, our engineer will help to solve by videocall or zoom meeting.
