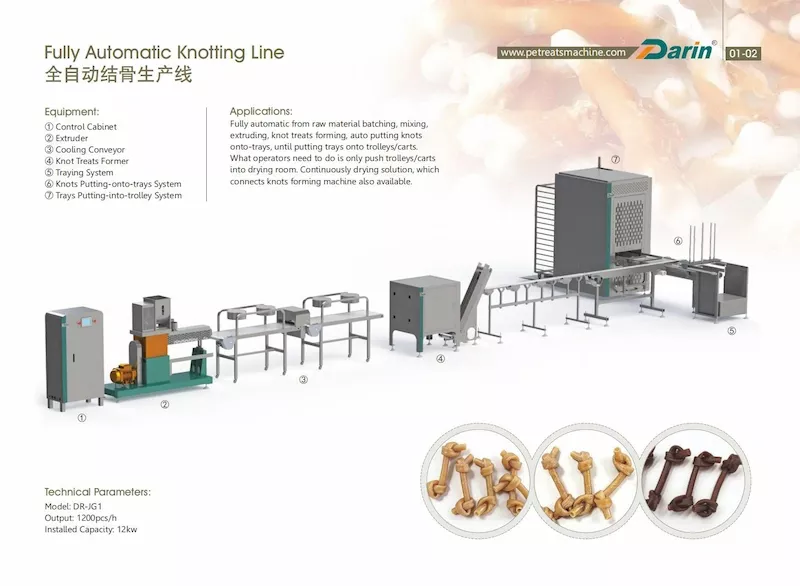

Fully Automatic Knotting Treats Line

Fully automatic from raw material batching, mixing, extruding, knot treats forming, auto putting knots onto-trays, until putting trays onto trolleys/carts. Operators only need to push trolleys into drying room.

Knotting Treats / Dog Chew Knots – Finished Products

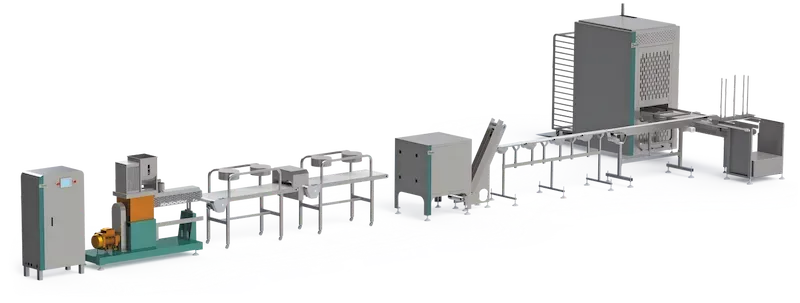

1. Fully Automatic Knotting Treats Line

Our Fully Automatic Knotting Treats Line is an advanced solution for producing high-quality knotted pet chews and dog chew knots. It integrates material preparation, extruding, knot forming, and conveying into a continuous automated process. The line handles rawhide and similar materials, ensuring uniform knotting, strong structure, and attractive appearance of final products.

Compared with traditional manual processing, it greatly improves production efficiency, reduces labor dependency, and ensures stable output quality. Equipped with intelligent control systems and high-precision forming units, the line allows flexible adjustment for different sizes and shapes of dog chew knots.

2. Designed for Pet Treat Manufacturers, Meat Processors, and Export Markets

This production line is purpose-built for:

• Pet treat processing plants producing knotted chews and dog chew knots

• Rawhide processing companies upgrading from manual to automatic knotting

• Functional pet snack manufacturers adding vitamins and probiotics

• Export-oriented food businesses supplying knotted treats to global markets

• Large-scale pet food brands seeking high-efficiency automated production

Its industrial design ensures reliable output, recipe consistency, and long-term operation—key factors for competitive knotted treat production.

3. Production Process Flow

This Knotting Treats Production Line follows a mature, industrial process designed for stable output, consistent product quality, and efficient large-scale production.

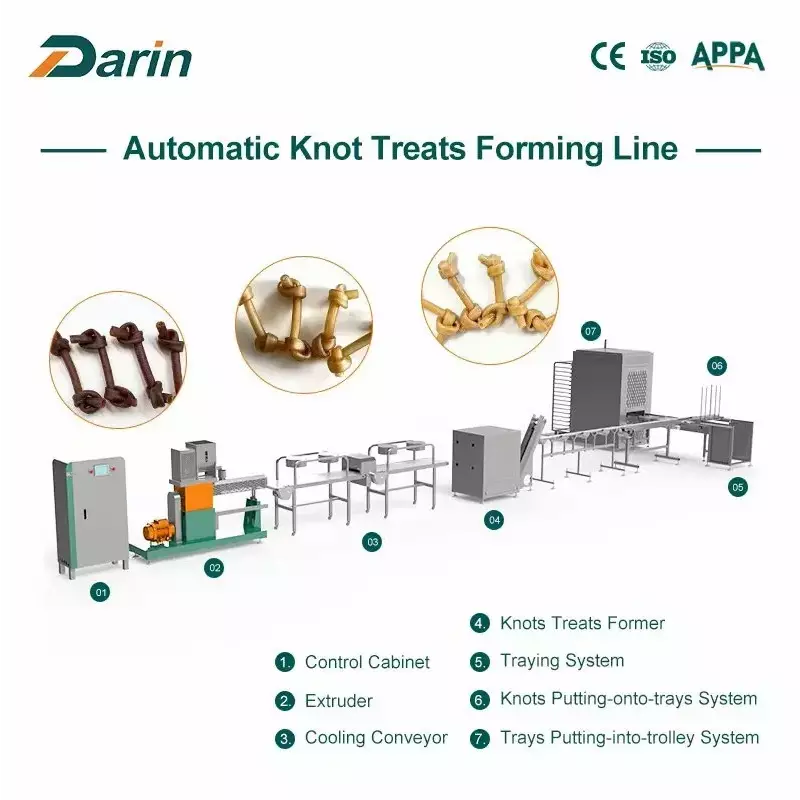

Batching → Mixing → Extruding → Cooling → Knot Forming → Traying → Trolley Loading

3.1 Batching & Mixing

Rawhide, meat paste, flour, and functional additives are precisely batched and mixed. Liquid ingredients are added continuously through quantitative pumps for uniform blending.

3.2 Extruding

The mixed material is fed into an extruder which shapes the raw material into continuous strips. The extrusion process ensures uniform density and consistent texture for knot forming.

3.3 Cooling

Extruded strips pass through a cooling conveyor to stabilize their shape and texture. This step ensures the material is ready for precise knot forming.

3.4 Knot Forming

The cooled strips enter the knot treats former. High-precision forming units create uniform knots with strong structure and attractive appearance. The system supports different sizes and shapes.

3.5 Traying & Trolley Loading

Formed knots are automatically placed onto trays. Trays are then loaded onto trolleys automatically. Operators only need to push trolleys into the drying room. Continuous drying solution is also available.

4. Key Advantages of Fully Automatic Knotting Treats Line

• High automation – Reduces labor costs significantly compared to manual processing

• Stable and uniform knot forming – High-precision forming units ensure consistent quality

• Flexible for different shapes and sizes – Quick changeover for various product specifications

• Fully automatic from batching to trolley loading – Operators only push trolleys into drying room

• High output capacity – 1,200 pcs/h to meet large-scale production demands

• Continuous drying solution available – Directly connects to knot forming machine

• Turnkey solution – Full technical support including design, installation, and training

5. Product Samples

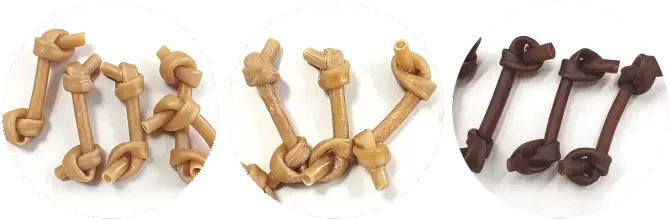

Knotting Treats / Dog Chew Knots – Finished Products

6. Standard Configuration – Key Components & Brands

7. Why Choose Jinan Darin Machinery?

+ Siemens Motors – Stable Power, Long Service Life

Motors are from Siemens, ensuring strong driving force, stable operation, and extended machine lifespan, even under long-time continuous production.

+ ABB / Schneider Electrical Components

Electric parts are from Siemens or Schneider, internationally recognized brands. Easy to find replacements in the local market, reducing downtime and maintenance costs.

+ Siemens PLC & Touch Screen – Easy and Smart Operation

PLC and touch screen are from Siemens, providing intuitive operation and reducing labor requirements. Operators can control the entire line easily with minimal training.

+ Food-Grade Stainless Steel 304

All parts in contact with raw materials or final products are made of Stainless Steel 304, meeting food-grade standards and ensuring hygiene, corrosion resistance, and easy cleaning.

+ Turnkey Solution with Full Technical Support

We provide complete turnkey solutions including machine design, factory layout, installation, training, and formulation support. Our team helps customers quickly start production and achieve long-term success in the pet food industry.

Darin Machinery Strength | Fully Automatic Knotting Treats Solutions

Darin Machinery is a leading manufacturer of food extrusion and processing equipment, specializing in turnkey solutions for the global pet food, snack food, and knotting treats processing industries. With over 15 years of experience, we have successfully delivered 1000+ projects to more than 100 countries worldwide.

Our company is built on a foundation of engineering excellence, innovation, and customer-centric service. From our state-of-the-art factory in Jinan, China, we design, manufacture, and install complete production lines for knotting treats, dog chew knots, knotted pet chews, rawhide knots, and functional pet snacks, meeting the highest international standards.

We take pride in our real factory capability, in-house engineering team, and global service network. When you choose Darin, you're not just buying a machine—you're partnering with a team dedicated to your long-term success.

Darin Machinery — Manufacturing Excellence in Action

Our Factory & Manufacturing Capability

Darin operates from a modern manufacturing facility covering over 10,000 square meters, equipped with advanced CNC machinery, quality inspection labs, and a dedicated R&D center. We maintain strict quality control at every stage—from raw material sourcing to final assembly. Our knotting treats processing lines are trusted by clients worldwide for producing high-quality dog chew knots and knotted pet treats.

Darin Factory — 10,000+ sqm Manufacturing Base

Darin Workshop — Precision Assembly Line

High-Precision Extruder for Knot Formation

International Customers Visiting Darin

Why Choose Darin as Your Manufacturing Partner?

Trusted by Pet Treat Manufacturers Worldwide

Customers from Africa, Asia, South America, and Europe

Why Darin Machinery?

• ✅ 15+ Years Experience in Food Processing Machinery



• ✅ 1000+ Installed Production Lines Worldwide



• ✅ CE & ISO Certified – Meeting Global Standards



• ✅ Exported to 100+ Countries



• ✅ Engineers Available for Overseas Installation & Training



• ✅ Real Factory, Real Production Capability



• ✅ Participating in 20+ Global Food Industry Exhibitions Every Year



• ✅ Darin Factory Audit Report Review



• ✅ Darin Partners – Global Collaboration



Complete Support for Your Business

• ✔ Free Formula & Recipe Development for Knotting Treats

• ✔ Customized Production Line Layout Design

• ✔ Installation & Training Worldwide

• ✔ 2 Years Warranty

• ✔ Lifetime Technical Support
