Automatic Dental Treats Processing And Drying Line

Automatic Dental Treats Processing And Drying Line | Turnkey Solutions Since 2011

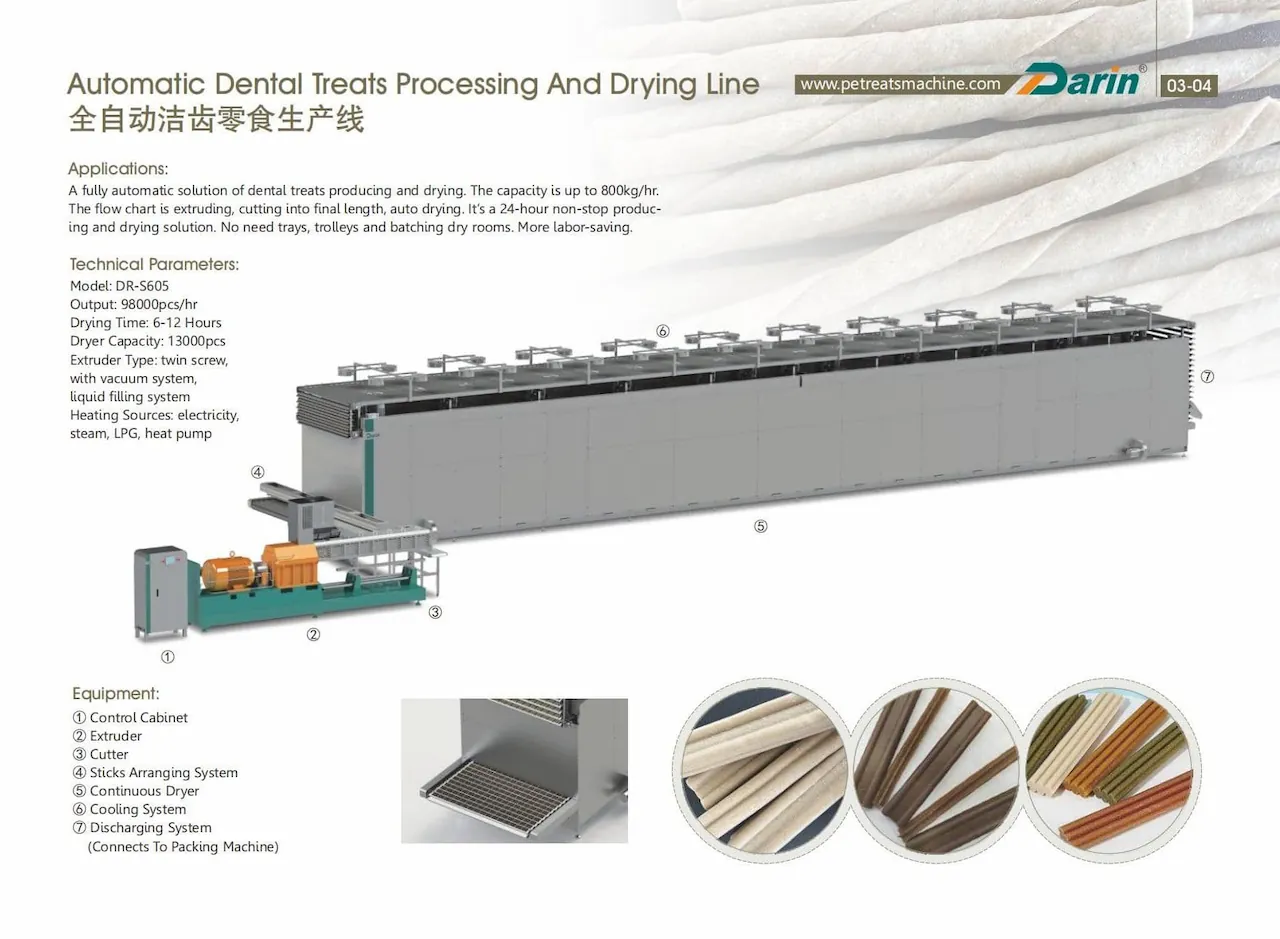

Automatic Dental Treats Processing And Drying Line – DR-S605 Model

Fully automatic dental treats producing and drying solution. 24-hour non-stop production. Up to 800 kg/h capacity.

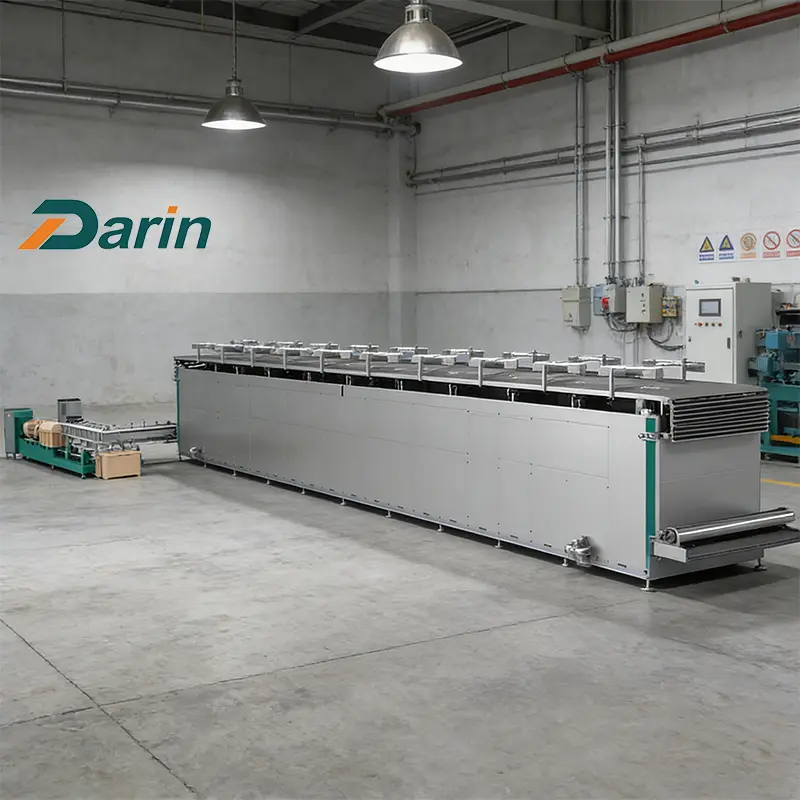

Production Line Workshop View

No trays, trolleys, or batch drying rooms needed. More labor-saving.

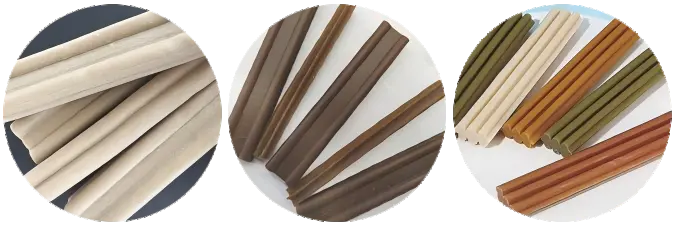

Dental Treats / Teeth Cleaning Chews – Finished Products

1. Automatic Dental Treats Processing And Drying Line

Our Automatic Dental Treats Processing And Drying Line is designed for high-volume production of dental treats and teeth cleaning chews. It integrates twin-screw extruding, cutting, arranging, and continuous drying in one fully automatic system. The line delivers consistent shape, uniform drying, and high output. It is a 24-hour non-stop producing and drying solution—no trays, trolleys, or batch drying rooms needed.

2. Designed for Pet Treat Manufacturers, Dental Chew Brands, and Export Markets

This production line is purpose-built for:

• Pet treat factories producing dental chews and teeth cleaning treats

• Dental chew manufacturers seeking high-capacity automated production

• Functional pet food companies adding vitamins and minerals

• Export-oriented food businesses supplying dental treats to global markets

• Large-scale pet food brands seeking 24/7 continuous production

Its industrial design ensures reliable output, recipe consistency, and long-term operation—key factors for competitive dental treat production.

3. Production Process Flow

This Dental Treats Production Line follows a mature, industrial process designed for stable output, consistent product quality, and efficient large-scale production.

Batching → Extruding → Cutting → Arranging → Continuous Drying → Cooling → Discharging

3.1 Batching & Extruding

Starch, flour, meat meal, and functional ingredients are precisely batched and fed into a twin-screw extruder. The extruder is equipped with vacuum system and liquid filling system for optimal texture and nutrition. It cooks and shapes the material into continuous strips with uniform density.

3.2 Cutting & Arranging

Extruded strips are cut to final length. The sticks arranging system automatically organizes the cut pieces for uniform drying. This ensures consistent drying results and reduces manual handling.

3.3 Continuous Drying

Arranged sticks enter the continuous dryer for 6-12 hours of thorough drying. The dryer has capacity of 13,000 pcs. Multiple heating sources available: electricity, steam, LPG, or heat pump. No trays, trolleys, or batch drying rooms needed.

3.4 Cooling & Discharging

Dried dental treats pass through the cooling system to reach room temperature. The discharging system directly connects to packing machine for complete end-to-end automation.

4. Key Advantages of Automatic Dental Treats Processing And Drying Line

• 24-hour non-stop production – Continuous producing and drying solution

• Twin-screw extruder – With vacuum system and liquid filling for optimal quality

• No trays, trolleys, or batch drying rooms – More labor-saving and efficient

• High output capacity – Up to 800 kg/h (98,000 pcs/h) to meet large-scale demand

• Flexible heating sources – Electricity, steam, LPG, or heat pump options

• Automatic arranging & discharging – Connects directly to packing machine

• Easy to clean and maintain – Food-grade stainless steel construction

5. Product Samples

Dental Treats / Teeth Cleaning Chews – Finished Products

6. Standard Configuration – Key Components & Brands

7. Why Choose Jinan Darin Machinery?

+ Siemens Motors – Stable Power, Long Service Life

Motors are from Siemens, ensuring strong driving force, stable operation, and extended machine lifespan, even under long-time continuous production.

+ ABB / Schneider Electrical Components

Electric parts are from Siemens or Schneider, internationally recognized brands. Easy to find replacements in the local market, reducing downtime and maintenance costs.

+ Siemens PLC & Touch Screen – Easy and Smart Operation

PLC and touch screen are from Siemens, providing intuitive operation and reducing labor requirements. Operators can control the entire line easily with minimal training.

+ Food-Grade Stainless Steel 304

All parts in contact with raw materials or final products are made of Stainless Steel 304, meeting food-grade standards and ensuring hygiene, corrosion resistance, and easy cleaning.

+ 24-Hour Non-Stop Production Solution

Our dental treats processing line integrates extruding, cutting, arranging, and continuous drying. No trays, trolleys, or batch drying rooms needed. One system, full automation, 24/7 continuous production.

Darin Machinery Strength | Automatic Dental Treats Processing And Drying Solutions

Darin Machinery is a leading manufacturer of food extrusion and processing equipment, specializing in turnkey solutions for the global pet food, snack food, and dental treats processing industries. With over 15 years of experience, we have successfully delivered 1000+ projects to more than 100 countries worldwide.

Our company is built on a foundation of engineering excellence, innovation, and customer-centric service. From our state-of-the-art factory in Jinan, China, we design, manufacture, and install complete production lines for dental treats, teeth cleaning chews, functional pet snacks, and long-lasting chews, meeting the highest international standards.

We take pride in our real factory capability, in-house engineering team, and global service network. When you choose Darin, you're not just buying a machine—you're partnering with a team dedicated to your long-term success.

Darin Machinery — Manufacturing Excellence in Action

Our Factory & Manufacturing Capability

Darin operates from a modern manufacturing facility covering over 10,000 square meters, equipped with advanced CNC machinery, quality inspection labs, and a dedicated R&D center. We maintain strict quality control at every stage—from raw material sourcing to final assembly. Our dental treats processing lines are trusted by clients worldwide for producing high-quality teeth cleaning chews and functional pet snacks.

Darin Factory — 10,000+ sqm Manufacturing Base

Darin Workshop — Precision Assembly Line

Twin-Screw Extruder with Vacuum System

International Customers Visiting Darin

Why Choose Darin as Your Manufacturing Partner?

Trusted by Pet Treat Manufacturers Worldwide

Customers from Africa, Asia, South America, and Europe

Why Darin Machinery?

• ✅ 15+ Years Experience in Food Processing Machinery



• ✅ 1000+ Installed Production Lines Worldwide



• ✅ CE & ISO Certified – Meeting Global Standards



• ✅ Exported to 100+ Countries



• ✅ Engineers Available for Overseas Installation & Training



• ✅ Real Factory, Real Production Capability



• ✅ Participating in 20+ Global Food Industry Exhibitions Every Year



• ✅ Darin Factory Audit Report Review



• ✅ Darin Partners – Global Collaboration



Complete Support for Your Business

• ✔ Free Formula & Recipe Development for Dental Treats

• ✔ Customized Production Line Layout Design

• ✔ Installation & Training Worldwide

• ✔ 2 Years Warranty

• ✔ Lifetime Technical Support

Frequently Asked Questions About Automatic Dental Treats Processing And Drying Line
