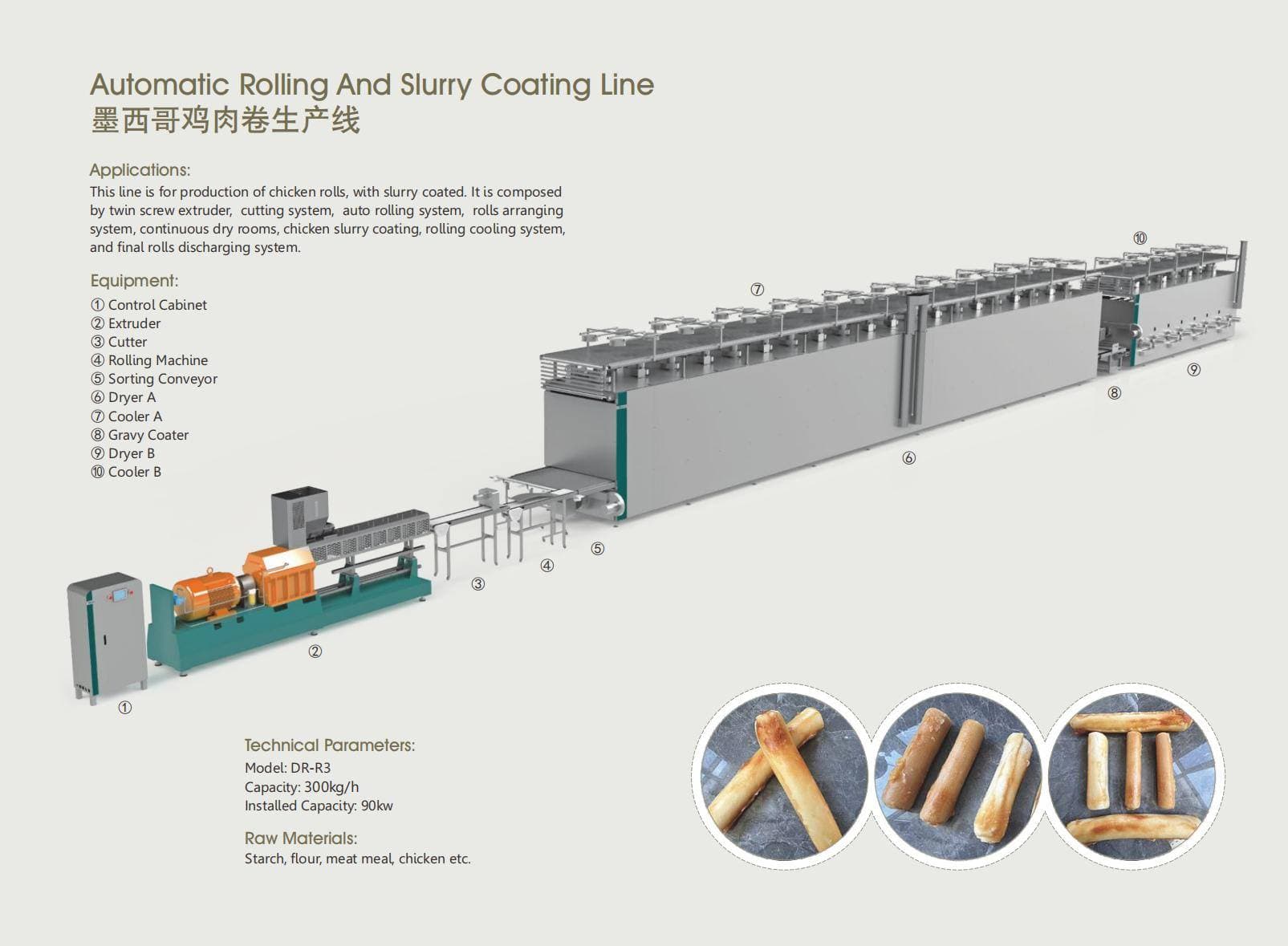

Automatic Rolling And Slurry Coating Line – DR-R3 Model

Twin-screw extruder, cutting, auto rolling, continuous drying, slurry coating, and cooling in one integrated system.

Coated Chicken Rolls – Finished Products

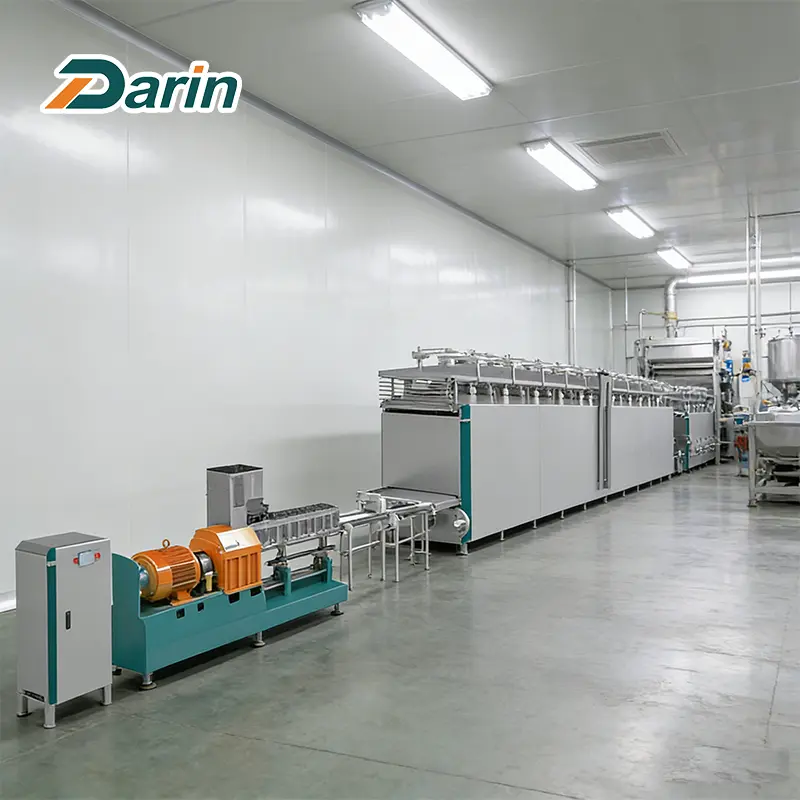

Production Line Workshop View

1. Automatic Rolling And Slurry Coating Line

Our Automatic Rolling And Slurry Coating Line is designed for high-volume production of coated chicken rolls and meat snacks. It integrates twin-screw extruding, cutting, rolling, drying, slurry coating, and cooling in one continuous system. The line delivers uniform shape, rich flavor, and consistent coating. Fully automatic from extruding to final discharging.

2. Designed for Pet Treat Manufacturers, Meat Processors, and Export Markets

This production line is purpose-built for:

• Pet treat factories producing coated chicken rolls and meat snacks

• Meat processing plants expanding into value-added snack products

• Functional pet food companies adding vitamins and minerals

• Export-oriented food businesses supplying coated treats to global markets

• Large-scale snack brands seeking high-efficiency automated production

Its industrial design ensures reliable output, recipe consistency, and long-term operation—key factors for competitive snack production.

3. Production Process Flow

This Rolling and Slurry Coating Line follows a mature, industrial process designed for stable output, consistent product quality, and efficient large-scale production.

Batching → Extruding → Cutting → Rolling → Drying → Coating → Drying → Cooling → Discharging

3.1 Batching & Extruding

Starch, flour, meat meal, chicken, and other ingredients are precisely batched and fed into a twin-screw extruder. The extruder cooks and shapes the material into continuous strips with uniform texture and density.

3.2 Cutting & Rolling

Extruded strips are cut to precise lengths. The cutting system then feeds into an automatic rolling machine which shapes the strips into uniform rolls. Rolls are arranged automatically for the next stage.

3.3 Drying & Coating

Rolled products pass through Dryer A for initial moisture removal. They then enter the gravy coater where chicken slurry coating is applied evenly. Coated rolls pass through Dryer B for final drying to achieve perfect texture and flavor.

3.4 Cooling & Discharging

Finished products pass through Cooler A and Cooler B to reach room temperature. The final rolls discharging system delivers finished coated chicken rolls ready for packaging.

4. Key Advantages of Automatic Rolling And Slurry Coating Line

• Twin-screw extrusion technology – Ensures uniform texture and high output

• Automatic rolling system – Produces consistent roll shape with high efficiency

• Slurry coating system – Evenly applies chicken gravy for rich flavor and nutrition

• Double drying & cooling system – Optimal moisture control for perfect texture

• Fully automatic from extruding to discharging – Reduces labor requirements significantly

• 300 kg/h capacity – Meets medium to large-scale production demands

• Easy to clean and maintain – Food-grade stainless steel construction

5. Product Samples

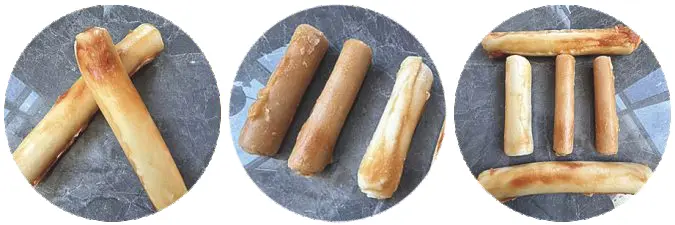

Coated Chicken Rolls / Meat Snacks – Finished Products

6. Standard Configuration – Key Components & Brands

7. Why Choose Jinan Darin Machinery?

+ Siemens Motors – Stable Power, Long Service Life

Motors are from Siemens, ensuring strong driving force, stable operation, and extended machine lifespan, even under long-time continuous production.

+ ABB / Schneider Electrical Components

Electric parts are from Siemens or Schneider, internationally recognized brands. Easy to find replacements in the local market, reducing downtime and maintenance costs.

+ Siemens PLC & Touch Screen – Easy and Smart Operation

PLC and touch screen are from Siemens, providing intuitive operation and reducing labor requirements. Operators can control the entire line easily with minimal training.

+ Food-Grade Stainless Steel 304

All parts in contact with raw materials or final products are made of Stainless Steel 304, meeting food-grade standards and ensuring hygiene, corrosion resistance, and easy cleaning.

+ Complete Automation from Extruding to Discharging

Our rolling and slurry coating line integrates twin-screw extruding, cutting, rolling, drying, coating, and cooling. One system, full automation from raw material to finished coated chicken rolls.

Darin Machinery Strength | Automatic Rolling And Slurry Coating Solutions

Darin Machinery is a leading manufacturer of food extrusion and processing equipment, specializing in turnkey solutions for the global pet food, snack food, and rolling and slurry coating processing industries. With over 15 years of experience, we have successfully delivered 1000+ projects to more than 100 countries worldwide.

Our company is built on a foundation of engineering excellence, innovation, and customer-centric service. From our state-of-the-art factory in Jinan, China, we design, manufacture, and install complete production lines for coated chicken rolls, meat snacks, slurry coated treats, and functional pet snacks, meeting the highest international standards.

We take pride in our real factory capability, in-house engineering team, and global service network. When you choose Darin, you're not just buying a machine—you're partnering with a team dedicated to your long-term success.

Darin Machinery — Manufacturing Excellence in Action

Our Factory & Manufacturing Capability

Darin operates from a modern manufacturing facility covering over 10,000 square meters, equipped with advanced CNC machinery, quality inspection labs, and a dedicated R&D center. We maintain strict quality control at every stage—from raw material sourcing to final assembly. Our rolling and slurry coating lines are trusted by clients worldwide for producing high-quality coated chicken rolls and meat snacks.

Darin Factory — 10,000+ sqm Manufacturing Base

Darin Workshop — Precision Assembly Line

High-Precision Twin-Screw Extruder

International Customers Visiting Darin

Why Choose Darin as Your Manufacturing Partner?

Trusted by Pet Treat Manufacturers Worldwide

Customers from Africa, Asia, South America, and Europe

Why Darin Machinery?

• ✅ 15+ Years Experience in Food Processing Machinery



• ✅ 1000+ Installed Production Lines Worldwide



• ✅ CE & ISO Certified – Meeting Global Standards



• ✅ Exported to 100+ Countries



• ✅ Engineers Available for Overseas Installation & Training



• ✅ Real Factory, Real Production Capability



• ✅ Participating in 20+ Global Food Industry Exhibitions Every Year



• ✅ Darin Factory Audit Report Review



• ✅ Darin Partners – Global Collaboration



Complete Support for Your Business

• ✔ Free Formula & Recipe Development for Coated Snacks

• ✔ Customized Production Line Layout Design

• ✔ Installation & Training Worldwide

• ✔ 2 Years Warranty

• ✔ Lifetime Technical Support
