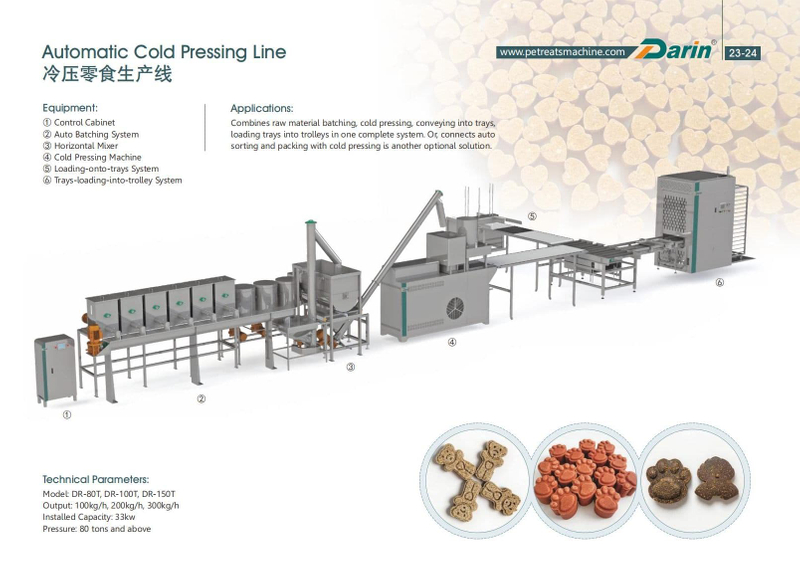

Automatic Cold Pressing Line

Automatic Cold Treats Pressing Line | Turnkey Solutions Since 2011

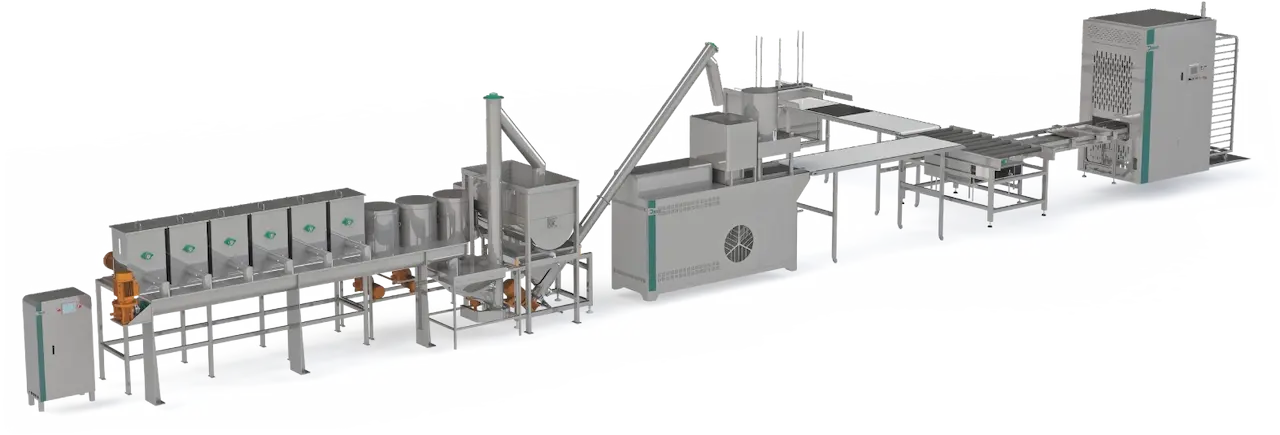

Automatic Cold Treats Pressing Line – DR-80T / DR-100T / DR-150T

Combines raw material batching, cold pressing, conveying into trays, loading trays into trolleys in one complete system.

Cold Pressed Treats – Finished Products

High-pressure cold pressing – 80 tons and above. Firm texture, great palatability, and appealing appearance.

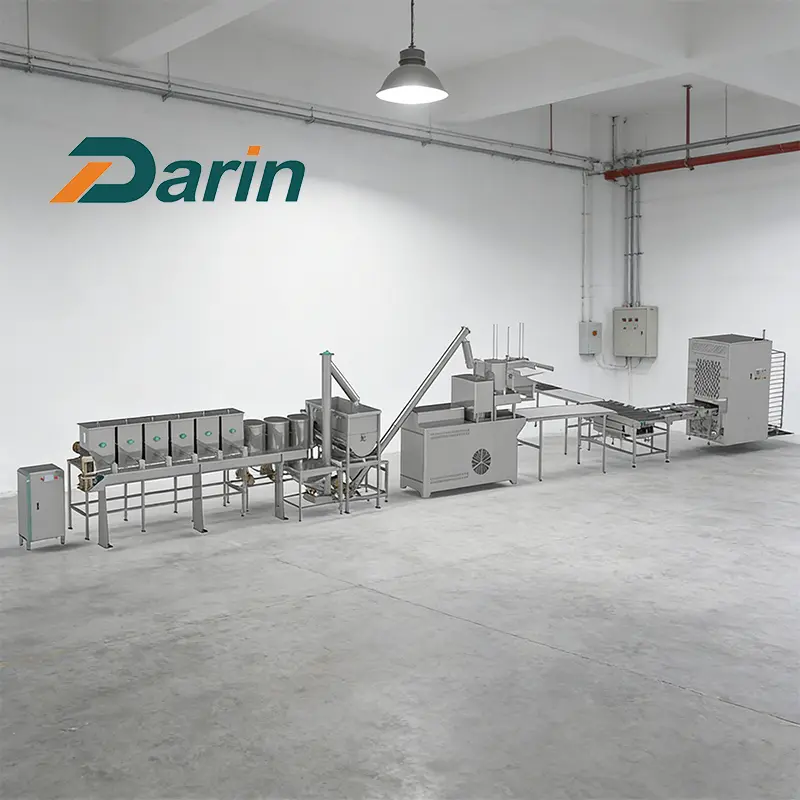

Production Line Workshop View

Auto batching system, horizontal mixer, cold pressing machine, loading-onto-trays system, and trays-loading-into-trolley system in one integrated system.

1. Automatic Cold Treats Pressing Line

Our Automatic Cold Treats Pressing Line is designed for high-quality production of cold-pressed pet treats and snacks. It integrates automatic batching, mixing, cold pressing, and tray loading in one complete system. High-pressure cold pressing—80 tons and above—delivers firm texture and consistent quality. The line offers 100–300 kg/h capacity and full automation from batching to trolley loading.

2. Designed for Pet Treat Manufacturers, Premium Snack Brands, and Export Markets

This production line is purpose-built for:

• Pet treat factories producing cold-pressed snacks and chews

• Functional pet food manufacturers adding vitamins and minerals

• Premium pet snack producers requiring high-pressure cold pressing

• Export-oriented food businesses supplying premium treats to global markets

• Medium to large-scale treat manufacturers seeking efficient automation

Its industrial design ensures reliable output, recipe consistency, and long-term operation—key factors for competitive cold-pressed treat production.

3. Production Process Flow

This Cold Pressing Line follows a mature, industrial process designed for stable output, consistent product quality, and efficient large-scale production.

Auto Batching → Mixing → Cold Pressing → Tray Loading → Trolley Loading → Finished Treats

3.1 Auto Batching & Mixing

High-precision automatic batching system weighs and doses ingredients accurately. The horizontal mixer blends all raw materials uniformly, ensuring consistent recipe formulation for every batch.

3.2 Cold Pressing

The cold pressing machine applies high pressure—80 tons and above—to shape the mixed material into uniform treats. Cold pressing preserves natural nutrients and flavors while creating a firm, appealing texture.

3.3 Tray & Trolley Loading

Formed treats are automatically loaded onto trays by the loading-onto-trays system. The trays-loading-into-trolley system then transfers them to trolleys. Operators only need to move trolleys to the drying room. Optional auto sorting and packing solution also available.

4. Key Advantages of Automatic Cold Treats Pressing Line

• High-pressure cold pressing – 80 tons and above for firm, consistent texture

• High-precision auto batching – Accurate ingredient weighing for consistent quality

• Horizontal mixer – Uniform blending of all raw materials

• Automatic tray & trolley loading – Reduces manual labor and increases efficiency

• High output capacity – 100–300 kg/h to meet various production demands

• Complete automation from batching to trolley loading – One system, full production

• Optional auto sorting & packing – Flexible end-of-line solutions

• Easy to clean and maintain – Food-grade stainless steel construction

5. Product Samples

Cold Pressed Treats / Chews – Finished Products

6. Standard Configuration – Key Components & Brands

7. Technical Specifications

8. Why Choose Jinan Darin Machinery?

+ Siemens Motors – Stable Power, Long Service Life

Motors are from Siemens, ensuring strong driving force, stable operation, and extended machine lifespan, even under long-time continuous production.

+ ABB / Schneider Electrical Components

Electric parts are from Siemens or Schneider, internationally recognized brands. Easy to find replacements in the local market, reducing downtime and maintenance costs.

+ Siemens PLC & Touch Screen – Easy and Smart Operation

PLC and touch screen are from Siemens, providing intuitive operation and reducing labor requirements. Operators can control the entire line easily with minimal training.

+ Food-Grade Stainless Steel 304

All parts in contact with raw materials or final products are made of Stainless Steel 304, meeting food-grade standards and ensuring hygiene, corrosion resistance, and easy cleaning.

+ Complete Automation from Batching to Trolley Loading

Our cold treats pressing line integrates auto batching, mixing, cold pressing, tray loading, and trolley loading. One system, full automation from raw materials to trolleys ready for drying.
